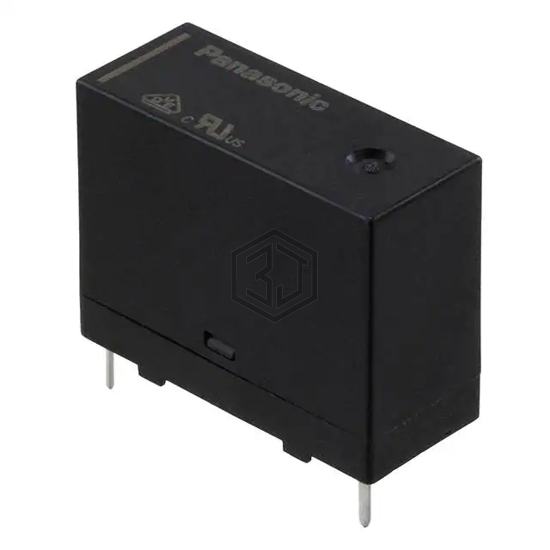

RELAY GEN PURPOSE SPST 16A 12V
ADW1212HLW is a Power Relays, Over 2 Amps manufactured by Panasonic Electric Works. RELAY GEN PURPOSE SPST 16A 12V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, contact material Silver Tin Oxide (AgSnO), termination style PC Pin.
In Stock: 859
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 277VAC - Max |
| Coil Current | 33.3 mA |
| Coil Type | Latching, Dual Coil |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | Class F |
| Must Operate Voltage | 9.6 VDC |
| Must Release Voltage | - |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose |
Submit your RFQ for ADW1212HLW and get a quote within 24 hours.
