RELAY GEN PURPOSE SPST 16A 5V

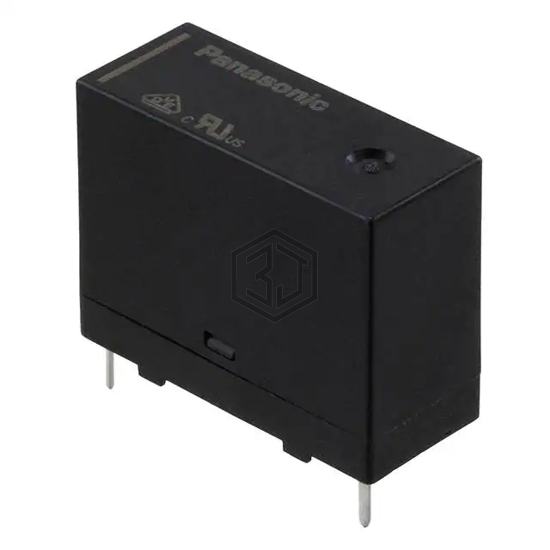

ADW1105HT is a Power Relays, Over 2 Amps manufactured by Panasonic Electric Works. RELAY GEN PURPOSE SPST 16A 5V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, contact material Silver Tin Oxide (AgSnO), termination style PC Pin.
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 5VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 277VAC - Max |
| Coil Current | 40 mA |
| Coil Type | Latching, Single Coil |
| Features | IEC Compliant |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | Class F |
| Must Operate Voltage | 4 VDC |
| Must Release Voltage | - |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose |
Submit your RFQ for ADW1105HT and get a quote within 24 hours.
