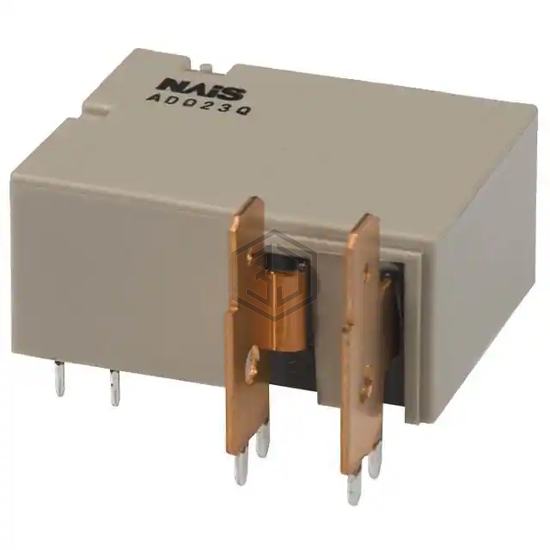

RELAY GEN PURPOSE SPST 30A 6V
ADQ23Q006 is a Power Relays, Over 2 Amps manufactured by Panasonic Electric Works. RELAY GEN PURPOSE SPST 30A 6V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 65°C, contact material Silver Tin Oxide (AgSnO), termination style PC Pin, Quick Connect - 0.250" (6.3mm).
In Stock: 9
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Mounting Type | Through Hole |
| Coil Voltage | 6VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 250VAC - Max |
| Coil Current | 167 mA |
| Coil Type | Latching, Dual Coil |
| Features | - |
| Termination Style | PC Pin, Quick Connect - 0.250" (6.3mm) |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 4.2 VDC |
| Must Release Voltage | - |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Operating Temperature | -40°C ~ 65°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose |
Submit your RFQ for ADQ23Q006 and get a quote within 24 hours.
