RELAY GEN PURPOSE SPST 50A 24V

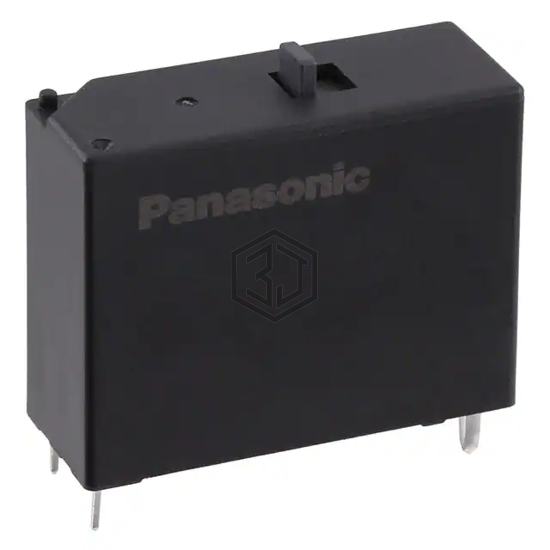

ADJH23124 is a Power Relays, Over 2 Amps manufactured by Panasonic Electric Works. RELAY GEN PURPOSE SPST 50A 24V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, contact material Silver Tin Oxide (AgSnO), termination style PC Pin.
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 50 A |
| Switching Voltage | 480VAC - Max |
| Coil Current | 83.3 mA |
| Coil Type | Latching, Dual Coil |
| Features | Test Button |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | Class F |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | - |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose |
Submit your RFQ for ADJH23124 and get a quote within 24 hours.
