RELAY GEN PURPOSE DPDT 10A 5V

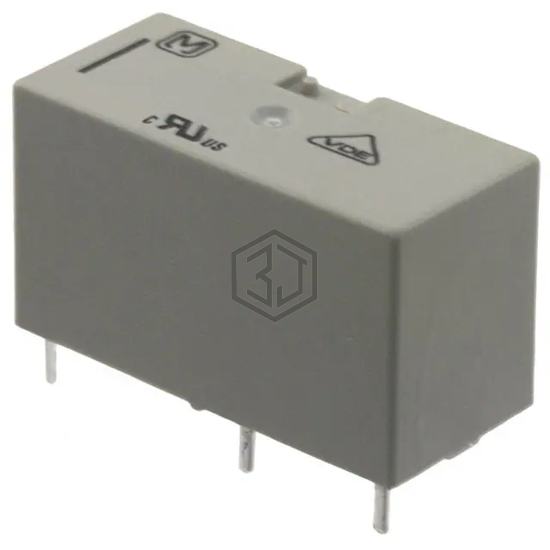

ADJ56005 is a Power Relays, Over 2 Amps manufactured by Panasonic Electric Works. RELAY GEN PURPOSE DPDT 10A 5V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 70°C, contact material Silver Tin Oxide (AgSnO), Gold (Au), termination style PC Pin.
In Stock: 1,196
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Through Hole |
| Coil Voltage | 5VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 250VAC - Max |
| Coil Current | 50 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Tin Oxide (AgSnO), Gold (Au) |
| Relay Type | General Purpose |
Submit your RFQ for ADJ56005 and get a quote within 24 hours.
