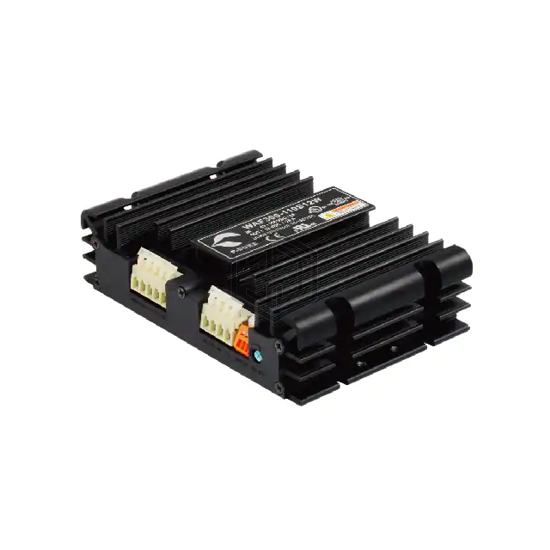

DC/DC CONVERTER 15V 300W
WAF300-110S15W is a DC DC Converters manufactured by P-DUKE Technology, Inc.. DC/DC CONVERTER 15V 300W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 100°C (With Derating), current - output (max) 20A, size / dimension 6.00" L x 4.00" W x 1.52" H (152.4mm x 101.6mm x 38.6mm).
In Stock: 1,721
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 43V |
| Voltage - Input (Max) | 160V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 300W |
| Voltage - Isolation | 3 kV |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 90% |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 6.00" L x 4.00" W x 1.52" H (152.4mm x 101.6mm x 38.6mm) |
| Approval Agency | CE, cULus, cURus |
| Standard Number | 508; 60950-1; 62368-1 |
