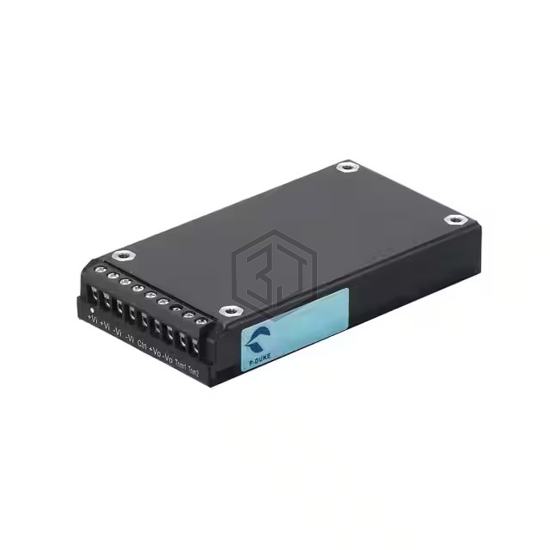

DC/DC CONVERTER 48V 154W
WAD150-48S48W is a DC DC Converters manufactured by P-DUKE Technology, Inc.. DC/DC CONVERTER 48V 154W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 100°C (With Derating), current - output (max) 3.2A, size / dimension 3.86" L x 2.56" W x 0.67" H (98.0mm x 65.0mm x 17.0mm).
In Stock: 1,214
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3.2A |
| Power (Watts) | 154W |
| Voltage - Isolation | 2.25 kV |
| Applications | ITE (Commercial) |
| Efficiency | 88% |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.86" L x 2.56" W x 0.67" H (98.0mm x 65.0mm x 17.0mm) |
| Approval Agency | CB, CE, cURus |
| Standard Number | 60950-1; 62368-1 |
Submit your RFQ for WAD150-48S48W and get a quote within 24 hours.
