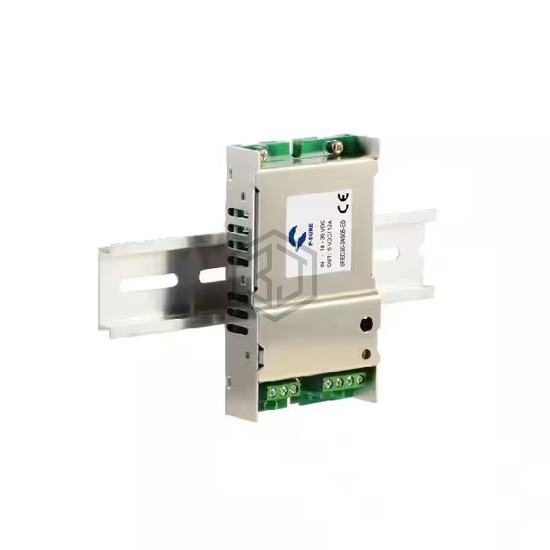

DC/DC CONVERTER 5V +/-12V 40W
UFEC40-24T0512 is a DC DC Converters manufactured by P-DUKE Technology, Inc.. DC/DC CONVERTER 5V +/-12V 40W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 100°C (With Derating), current - output (max) 6A, 400mA, 400mA, size / dimension 4.00" L x 2.25" W x 0.79" H (101.6mm x 57.2mm x 20.1mm).
In Stock: 1,343
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Number of Outputs | 3 |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | -12V |
| Voltage - Output 4 | - |
| Current - Output (Max) | 6A, 400mA, 400mA |
| Power (Watts) | 40W |
| Voltage - Isolation | 1.6 kV |
| Applications | ITE (Commercial) |
| Efficiency | 86% |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.00" L x 2.25" W x 0.79" H (101.6mm x 57.2mm x 20.1mm) |
| Approval Agency | CE |
| Standard Number | 60950-1; 62368-1 |
Submit your RFQ for UFEC40-24T0512 and get a quote within 24 hours.
