DC/DC CONVERTER +/-12V 30W

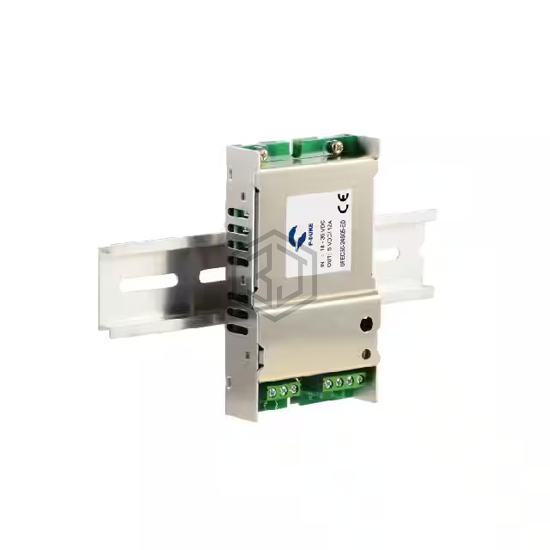

UFEC30-24D12 is a DC DC Converters manufactured by P-DUKE Technology, Inc.. DC/DC CONVERTER +/-12V 30W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 100°C (With Derating), current - output (max) 1.25A, 1.25A, size / dimension 4.00" L x 2.25" W x 0.79" H (101.6mm x 57.2mm x 20.1mm).
In Stock: 3,978
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Number of Outputs | 2 |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1.25A, 1.25A |
| Power (Watts) | 30W |
| Voltage - Isolation | 1.6 kV |
| Applications | ITE (Commercial) |
| Efficiency | 87% |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.00" L x 2.25" W x 0.79" H (101.6mm x 57.2mm x 20.1mm) |
| Approval Agency | CB, CE |
| Standard Number | 60950-1; 62368-1 |
