AC/DC CONVERTER 24V 65W

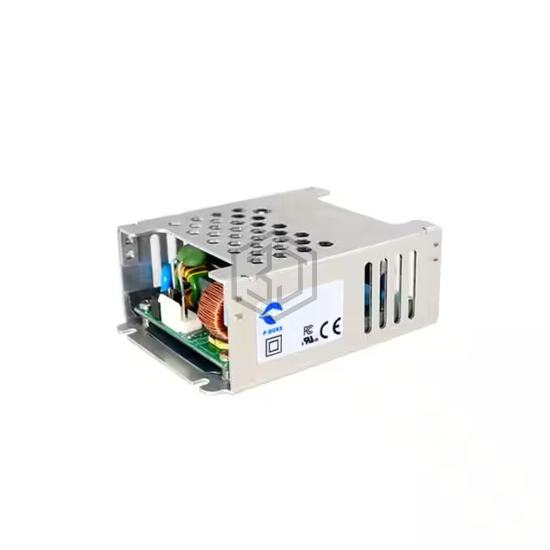

TED65US241C-P is a AC DC Converters manufactured by P-DUKE Technology, Inc.. AC/DC CONVERTER 24V 65W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C (With Derating), voltage - input 85 ~ 264 VAC, 120 ~ 370 VDC, size / dimension 5.53" L x 2.38" W x 1.31" H (140.5mm x 60.5mm x 33.3mm).
In Stock: 6,847
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC, 120 ~ 370 VDC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 2.71 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 65W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 93.5% |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Features | Adjustable Output, DC Input Capable, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.53" L x 2.38" W x 1.31" H (140.5mm x 60.5mm x 33.3mm) |
| Approval Agency | CB, CE, cURus, FCC, UL |
| Standard Number | 62368-1 |
Submit your RFQ for TED65US241C-P and get a quote within 24 hours.
