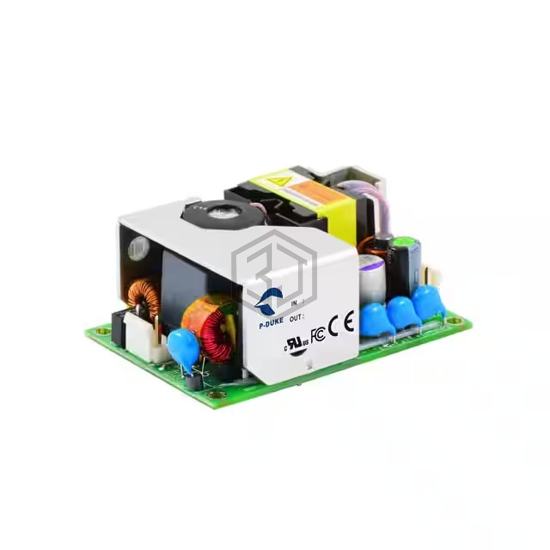

AC/DC CONVERTER 24V 100W
TAD125US24B is a AC DC Converters manufactured by P-DUKE Technology, Inc.. AC/DC CONVERTER 24V 100W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C (With Derating), voltage - input 85 ~ 264 VAC, 120 ~ 370 VDC, size / dimension 3.04" L x 2.01" W x 1.16" H (77.2mm x 51.1mm x 29.5mm).
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC, 120 ~ 370 VDC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 5.21 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 100W (125W Forced Air) |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 4 kV |
| Efficiency | 92% |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Features | Adjustable Output, DC Input Capable, PFC, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.04" L x 2.01" W x 1.16" H (77.2mm x 51.1mm x 29.5mm) |
| Approval Agency | CB, CE, cURus, FCC, UL |
| Standard Number | 62368-1 |
Submit your RFQ for TAD125US24B and get a quote within 24 hours.
