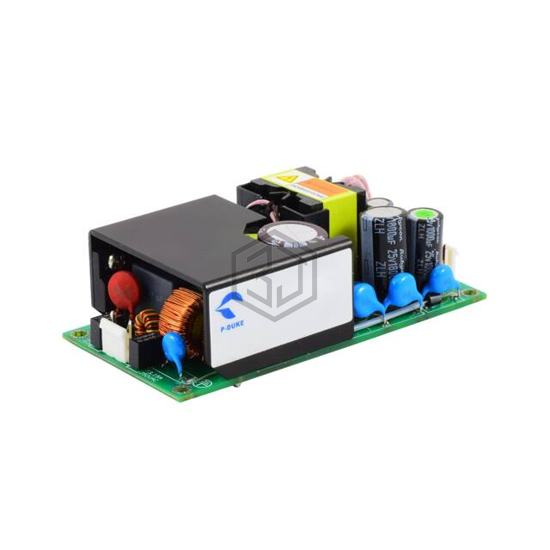

AC/DC CONVERTER 24V 110W
MAF150US24B is a AC DC Converters manufactured by P-DUKE Technology, Inc.. AC/DC CONVERTER 24V 110W. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C (With Derating), voltage - input 85 ~ 264 VAC, 120 ~ 370 VDC, size / dimension 4.00" L x 2.00" W x 1.16" H (101.6mm x 50.8mm x 29.5mm).
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC, 120 ~ 370 VDC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 4.59 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 110W (150W Forced Air) |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 92% |
| Operating Temperature | -25°C ~ 85°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.00" L x 2.00" W x 1.16" H (101.6mm x 50.8mm x 29.5mm) |
| Approval Agency | CB, CE, cURus, FCC |
| Standard Number | 60601-1; 60950-1 |
Submit your RFQ for MAF150US24B and get a quote within 24 hours.
