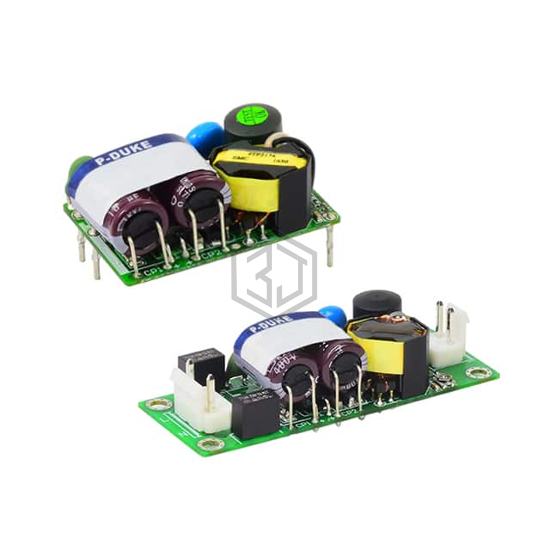

AC/DC CONVERTER 24V 15W
MAC15US24B-D is a AC DC Converters manufactured by P-DUKE Technology, Inc.. AC/DC CONVERTER 24V 15W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (With Derating), voltage - input 85 ~ 264 VAC, 120 ~ 370 VDC, package / case 5-DIP Module.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC, 120 ~ 370 VDC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 625mA |
| Power (Watts) | 15 W |
| Applications | ITE (Commercial), Medical |
| Features | Adjustable Output, Universal Input |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 88% |
| Mounting Type | Through Hole |
| Package / Case | 5-DIP Module |
| Size / Dimension | 1.50" L x 1.00" W x 0.80" H (38.1mm x 25.4mm x 20.2mm) |
| Approval Agency | CB, CE, cURus, FCC |
| Standard Number | - |
Submit your RFQ for MAC15US24B-D and get a quote within 24 hours.
