DC DC CONVERTER +/-12V 20W

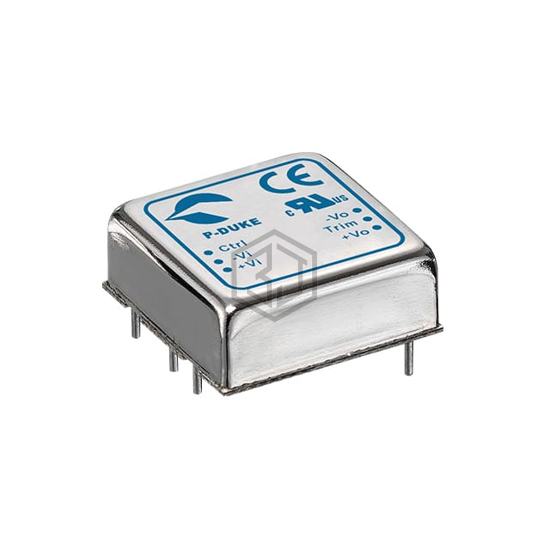

LCD20-24D12 is a DC DC Converters manufactured by P-DUKE Technology, Inc.. DC DC CONVERTER +/-12V 20W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 101°C (With Derating), package / case 6-DIP Module, current - output (max) 833mA, 833mA.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 833mA, 833mA |
| Power (Watts) | 20 W |
| Voltage - Isolation | 1.6 kV |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off |
| Operating Temperature | -40°C ~ 101°C (With Derating) |
| Efficiency | 90% |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | CB, CE, cURus |
| Standard Number | - |
Submit your RFQ for LCD20-24D12 and get a quote within 24 hours.
