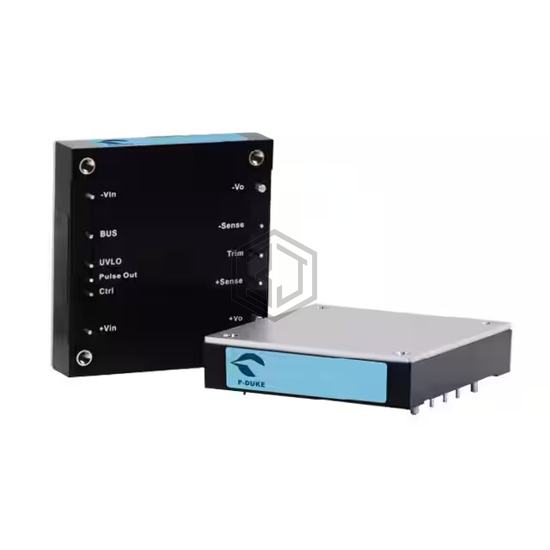

DC DC CONVERTER 5V 200W
HAE200-72S05UA/B is a DC DC Converters manufactured by P-DUKE Technology, Inc.. DC DC CONVERTER 5V 200W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C (With Derating), package / case Half Brick, current - output (max) 40A.
In Stock: 9,287
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 16V |
| Voltage - Input (Max) | 160V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 40A |
| Power (Watts) | 200 W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial), Railway |
| Features | Adjustable Output, Baseplate, Remote On/Off, Remote Sense |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 90.5% |
| Mounting Type | Through Hole |
| Package / Case | Half Brick |
| Size / Dimension | 2.40" L x 2.28" W x 0.51" H (61.0mm x 57.9mm x 13.0mm) |
| Supplier Device Package | Half Brick |
| Control Features | Enable, Active Low |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for HAE200-72S05UA/B and get a quote within 24 hours.
