DC DC CONVERTER +/-15V 8W

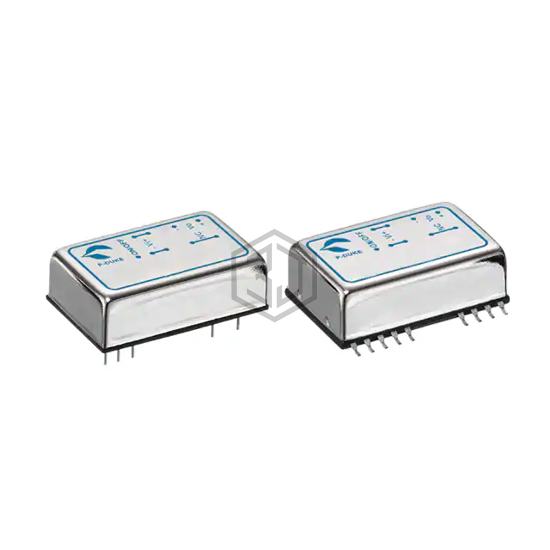

FKC08-24D15W is a DC DC Converters manufactured by P-DUKE Technology, Inc.. DC DC CONVERTER +/-15V 8W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C (With Derating), package / case 24-DIP Module, 9 Leads, current - output (max) 267mA, 267mA.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 267mA, 267mA |
| Power (Watts) | 8 W |
| Voltage - Isolation | 1.6 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 86% |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 9 Leads |
| Size / Dimension | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB, CE, cURus |
| Standard Number | - |
Submit your RFQ for FKC08-24D15W and get a quote within 24 hours.
