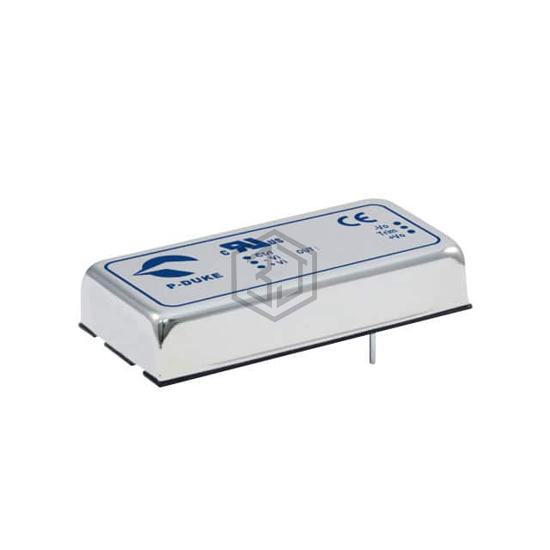

DC DC CONVERTER +/-5V 20W
FED20-24D05W is a DC DC Converters manufactured by P-DUKE Technology, Inc.. DC DC CONVERTER +/-5V 20W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C (With Derating), package / case 6-DIP Module, current - output (max) 2A, 2A.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2A, 2A |
| Power (Watts) | 20 W |
| Voltage - Isolation | 1.6 kV |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off, Remote Sense |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 88% |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | CB, CE, cURus |
| Standard Number | 60950-1; 62368-1 |
Submit your RFQ for FED20-24D05W and get a quote within 24 hours.
