ISOLATED / 20W/ VOUT:15

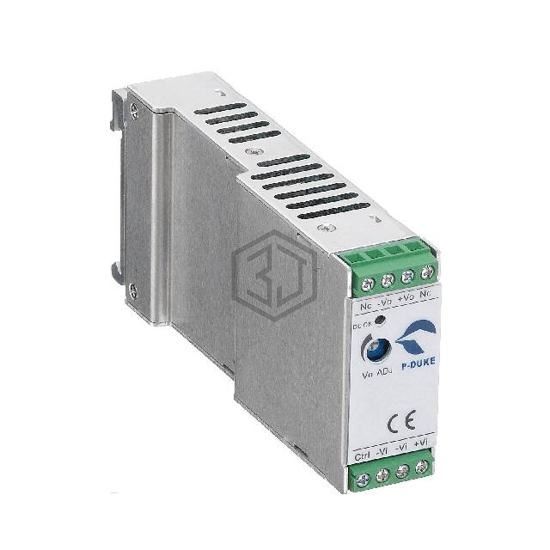

DFED20-12D15 is a Industrial, DIN Rail Power Supplies manufactured by P-DUKE Technology, Inc.. ISOLATED / 20W/ VOUT:15. Key specifications: operating temperature -40°C ~ 92°C (With Derating), current - output (max) 667mA, 667mA, size / dimension 4.90" L x 2.27" W x 0.94" H (124.5mm x 57.7mm x 23.9mm), number of outputs 2.
In Stock: 9,137
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 2 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 9.5V |
| DC Voltage - Input (Max) | 18V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 667mA, 667mA |
| Power (Watts) | 20W |
| Voltage - Isolation | 1.6 kV |
| Applications | ITE (Commercial) |
| Efficiency | 84% |
| Operating Temperature | -40°C ~ 92°C (With Derating) |
| Features | Adjustable Output, Remote On/Off |
| Size / Dimension | 4.90" L x 2.27" W x 0.94" H (124.5mm x 57.7mm x 23.9mm) |
| Approval Agency | CB, CE |
| Standard Number | 60950-1 |
Submit your RFQ for DFED20-12D15 and get a quote within 24 hours.
