ISOLATED / 15W/ VOUT:5.1

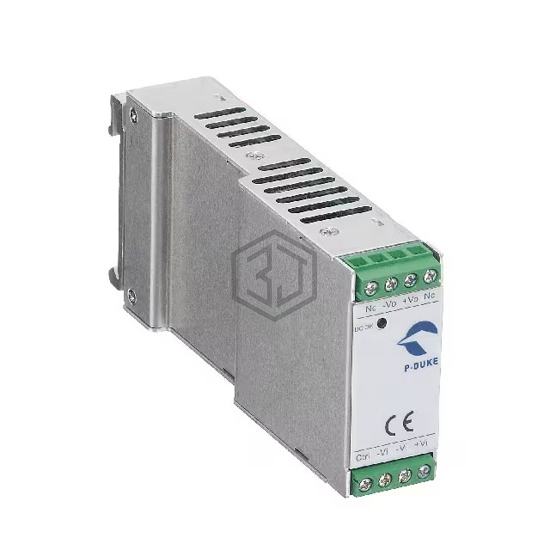

DFEC15-24S5P1W is a Industrial, DIN Rail Power Supplies manufactured by P-DUKE Technology, Inc.. ISOLATED / 15W/ VOUT:5.1. Key specifications: operating temperature -40°C ~ 93°C (With Derating), current - output (max) 3A, size / dimension 4.90" L x 2.27" W x 0.94" H (124.5mm x 57.7mm x 23.9mm), number of outputs 1.
In Stock: 7,462
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 1 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 9.5V |
| DC Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 5.1V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 3A |
| Power (Watts) | 15W |
| Voltage - Isolation | 1.6 kV |
| Applications | ITE (Commercial) |
| Efficiency | 85% |
| Operating Temperature | -40°C ~ 93°C (With Derating) |
| Features | Adjustable Output, Remote On/Off |
| Size / Dimension | 4.90" L x 2.27" W x 0.94" H (124.5mm x 57.7mm x 23.9mm) |
| Approval Agency | CB, CE |
| Standard Number | 60950-1; 62368-1 |
Submit your RFQ for DFEC15-24S5P1W and get a quote within 24 hours.
