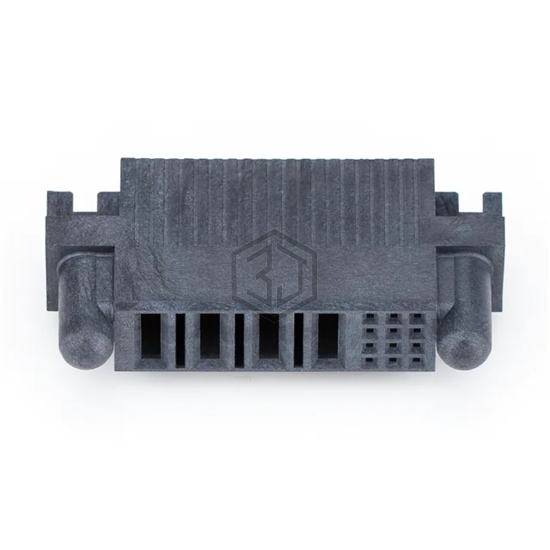

HIGH POWER AND SIGNAL CONNECTOR,
9391-A4S96CB30DA is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Oupiin. HIGH POWER AND SIGNAL CONNECTOR,. Key specifications: mounting type Through Hole, Right Angle, operating temperature -40°C ~ 105°C, termination Solder, number of positions 96.
In Stock: 13
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 96 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 4 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | - |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3.00µin (0.076µm) |
| Insulation Color | Black |
| Insulation Height | 0.470" (11.94mm) |
| Contact Length - Post | 0.135" (3.43mm) |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Mating Guide |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 9391-A4S96CB30DA and get a quote within 24 hours.
