HIGH POWER AND SIGNAL CONNECTOR,

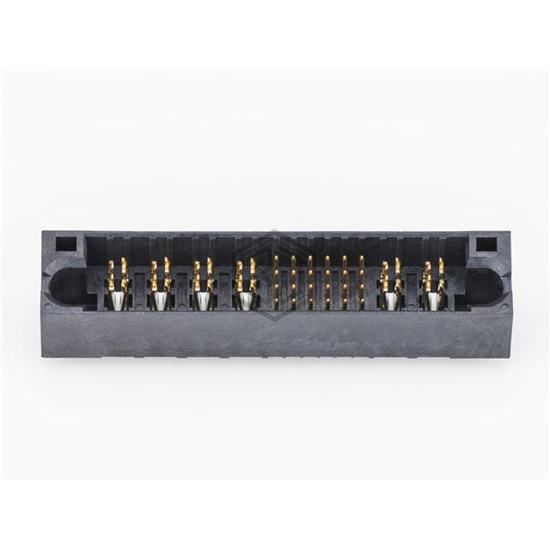

9391-A3S96CB30PA is a Rectangular Connectors - Headers, Male Pins manufactured by Oupiin. HIGH POWER AND SIGNAL CONNECTOR,. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, contact material Brass, termination Press-Fit.
In Stock: 15
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 96 |
| Number of Rows | 4 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Press-Fit |
| Fastening Type | - |
| Contact Length - Mating | 0.270" (6.86mm) |
| Contact Length - Post | 0.171" (4.35mm) |
| Overall Contact Length | - |
| Insulation Height | 0.496" (12.60mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3.00µin (0.076µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
Submit your RFQ for 9391-A3S96CB30PA and get a quote within 24 hours.
