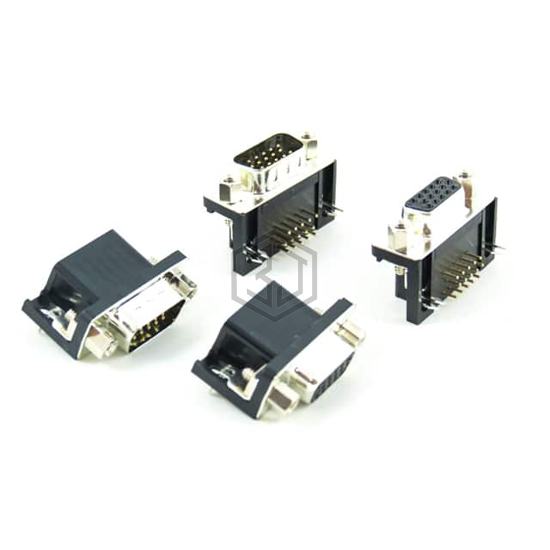

CONN D-SUB HD PLUG 26P R/A SLDR
7916-26MBA is a D-Sub Connectors manufactured by Oupiin. CONN D-SUB HD PLUG 26P R/A SLDR. Key specifications: mounting type Through Hole, Right Angle, current rating (amps) 1A, termination Solder, number of positions 26.
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, High Density |
| Connector Type | Plug, Male Pins |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Mounting Type | Through Hole, Right Angle |
| Shell Size, Connector Layout | 2 (DA, A) High Density |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 1A |
| Backset Spacing | 0.350" (8.89mm) |
| Features | Board Lock, Grounding Indents |
