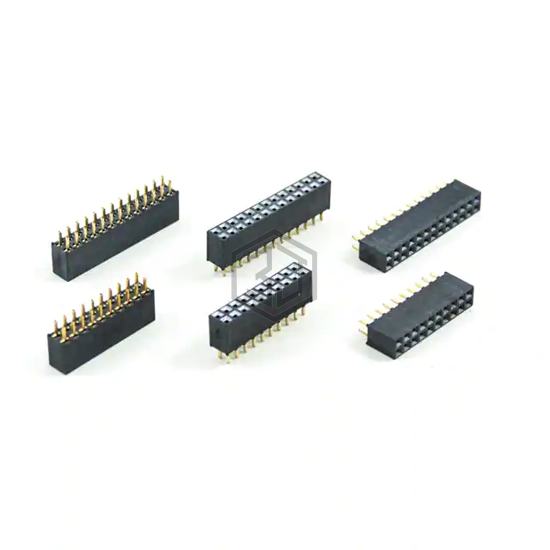

PCB SOCKET, DOUBLE ROW, 18 PIN,
2145-2X09C00SA is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Oupiin. PCB SOCKET, DOUBLE ROW, 18 PIN,. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 125°C, current rating (amps) 1A, termination Solder.
In Stock: 781
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Socket |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 18 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Insulation Color | - |
| Insulation Height | 0.248" (6.30mm) |
| Contact Length - Post | 0.094" (2.40mm) |
| Operating Temperature | -65°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 1A |
| Voltage Rating | - |
Submit your RFQ for 2145-2X09C00SA and get a quote within 24 hours.
