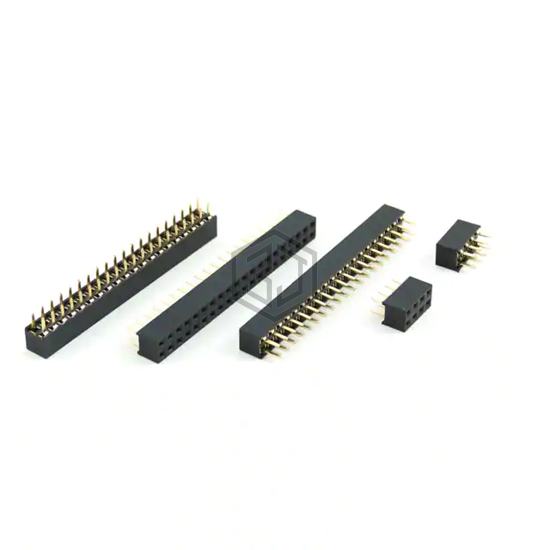

PCB SOCKET, DOUBLE ROW, 22 PIN,
2041-2X11G00SA is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Oupiin. PCB SOCKET, DOUBLE ROW, 22 PIN,. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, current rating (amps) 2A, termination Solder.
In Stock: 968
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Socket |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 22 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Insulation Color | - |
| Insulation Height | 0.197" (5.00mm) |
| Contact Length - Post | 0.126" (3.20mm) |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 2A |
| Voltage Rating | - |
Submit your RFQ for 2041-2X11G00SA and get a quote within 24 hours.
