PIN HEADER, DOUBLE ROW, 12 PIN,

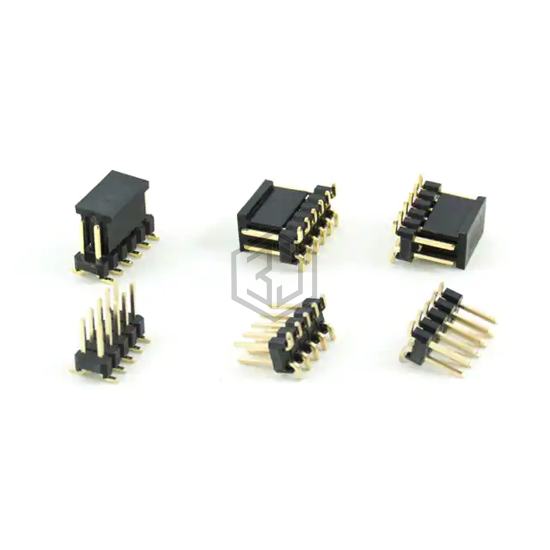

2015-2X06G00D-7.4-6.2-0.8T-P is a Rectangular Connectors - Headers, Male Pins manufactured by Oupiin. PIN HEADER, DOUBLE ROW, 12 PIN,. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, contact material Brass, current rating (amps) 3A.
In Stock: 9,896
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.059" (1.50mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Unshrouded |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.244" (6.20mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.098" (2.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Features | Pick and Place |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A |
| Voltage Rating | - |
Submit your RFQ for 2015-2X06G00D-7.4-6.2-0.8T-P and get a quote within 24 hours.
