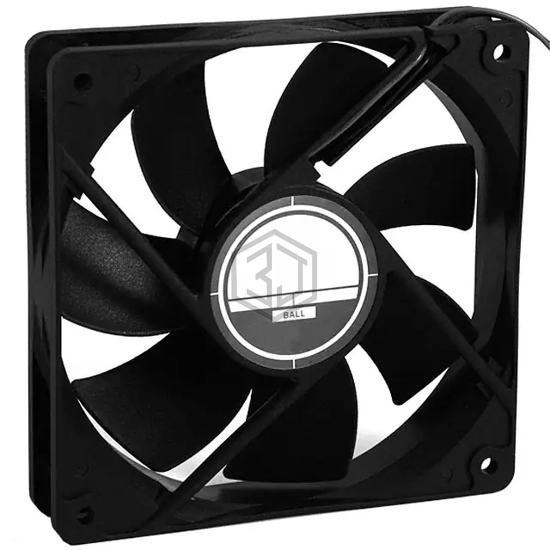

OD1225-24LB02A - Orion Fans - DC Brushless Fans (BLDC)

OD1225-24LB02A

Orion Fans

FAN AXIAL 120X25MM 24VDC WIRE

OD1225-24LB02A is a DC Brushless Fans (BLDC) manufactured by Orion Fans. FAN AXIAL 120X25MM 24VDC WIRE. Key specifications: operating temperature -4 ~ 149°F (-20 ~ 65°C), voltage - rated 24VDC, size / dimension Square - 120mm L x 120mm H, termination 3 Wire Leads.

In Stock: 8,860

Product Attributes

AttributeValue
Product StatusActive
Voltage - Rated24VDC
Size / DimensionSquare - 120mm L x 120mm H
Width25.00mm
Air Flow70.0 CFM (1.96m³/min)
Static Pressure0.150 in H2O (37.3 Pa)
Bearing TypeBall
Fan TypeTubeaxial
FeaturesAuto Restart, Locked Rotor Sensor
Noise25.0dB(A)
Power (Watts)2.4 W
RPM1900 RPM
Termination3 Wire Leads
Ingress Protection-
Operating Temperature-4 ~ 149°F (-20 ~ 65°C)
Approval AgencyCE, cURus, TUV, UR
Weight0.341 lb (154.67 g)

Frequently Asked Questions

OD1225-24LB02A is a DC Brushless Fans (BLDC) manufactured by Orion Fans. FAN AXIAL 120X25MM 24VDC WIRE

The operating temperature range of OD1225-24LB02A is -4 ~ 149°F (-20 ~ 65°C).

The supply voltage of OD1225-24LB02A is 24VDC.

The size of OD1225-24LB02A is Square - 120mm L x 120mm H.
