TRANS PNP 60V 25A TO247-3

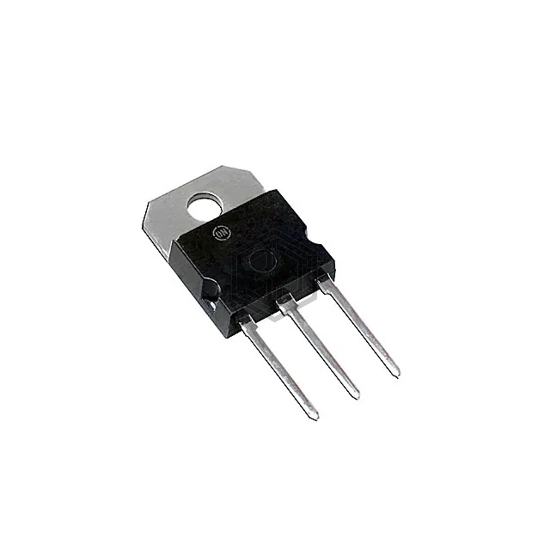

TIP36AG is a Transistors - Bipolar (BJT) - Single manufactured by onsemi. TRANS PNP 60V 25A TO247-3. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 25 A.
In Stock: 101
| Attribute | Value |
|---|---|
| Product Status | Active |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 25 A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Vce Saturation (Max) @ Ib, Ic | 4V @ 5A, 25A |
| Current - Collector Cutoff (Max) | 1mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 15 @ 15A, 4V |
| Power - Max | 125 W |
| Frequency - Transition | 3MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247-3 |
Submit your RFQ for TIP36AG and get a quote within 24 hours.
