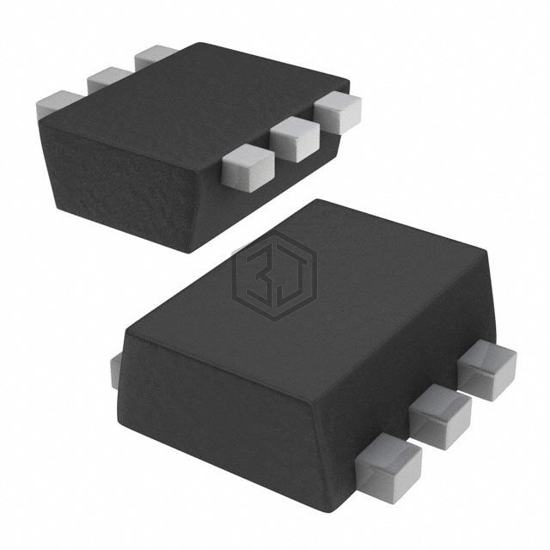

SS2003M-TL-E
DIODE SCHOTTKY 30V 2A 6MCPH
SS2003M-TL-E is a Diodes - Rectifiers - Single manufactured by onsemi. DIODE SCHOTTKY 30V 2A 6MCPH. Key specifications: mounting type Surface Mount, package / case 6-SMD, Flat Leads.
In Stock: 562,184
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 2A |
| Voltage - Forward (Vf) (Max) @ If | 400 mV @ 2 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 20 ns |
| Current - Reverse Leakage @ Vr | 1.25 mA @ 15 V |
| Capacitance @ Vr, F | 75pF @ 10V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, Flat Leads |
| Supplier Device Package | 6-MCPH |
| Operating Temperature - Junction | -55°C ~ 125°C |
Frequently Asked Questions
SS2003M-TL-E is a Diodes - Rectifiers - Single manufactured by onsemi. DIODE SCHOTTKY 30V 2A 6MCPH
The mounting type of SS2003M-TL-E is Surface Mount.
The package type of SS2003M-TL-E is 6-SMD, Flat Leads.
Yes, SS2003M-TL-E is listed as Not For New Designs. Consider requesting a quote for alternative parts.
