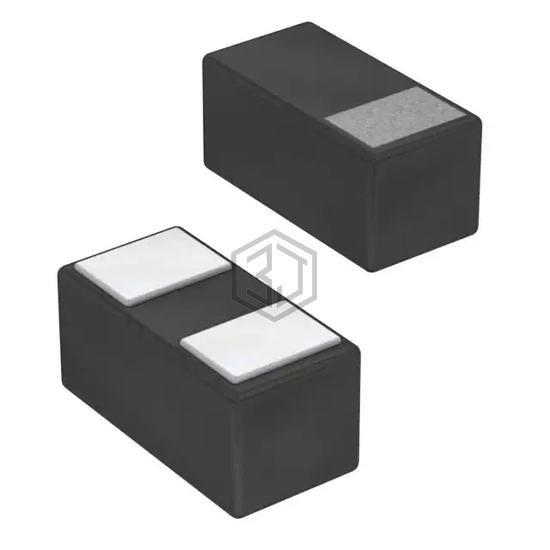

SS0503EC-TR-H
DIODE SCHOTTKY 30V 500MA 2ECSP
SS0503EC-TR-H is a Diodes - Rectifiers - Single manufactured by onsemi. DIODE SCHOTTKY 30V 500MA 2ECSP. Key specifications: mounting type Surface Mount, package / case 2-UDFN.
In Stock: 548,300
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 500mA |
| Voltage - Forward (Vf) (Max) @ If | 560 mV @ 500 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 10 ns |
| Current - Reverse Leakage @ Vr | 100 µA @ 15 V |
| Capacitance @ Vr, F | 6pF @ 10V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | 2-UDFN |
| Supplier Device Package | 2-ECSP1008 |
| Operating Temperature - Junction | -55°C ~ 125°C |
Frequently Asked Questions
SS0503EC-TR-H is a Diodes - Rectifiers - Single manufactured by onsemi. DIODE SCHOTTKY 30V 500MA 2ECSP
The mounting type of SS0503EC-TR-H is Surface Mount.
The package type of SS0503EC-TR-H is 2-UDFN.
Yes, SS0503EC-TR-H is listed as Obsolete. Consider requesting a quote for alternative parts.
