MAGNITUDE COMPARATOR

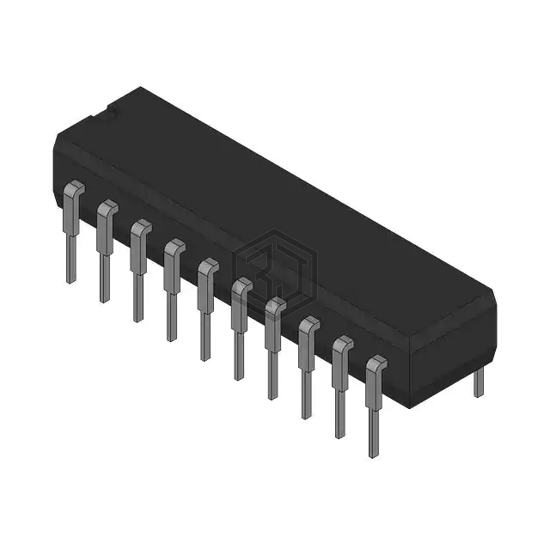

SN74LS684N is a Logic - Comparators manufactured by onsemi. MAGNITUDE COMPARATOR. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply 4.85V ~ 5.25V, package / case 20-DIP (0.300", 7.62mm).
In Stock: 17,253
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Magnitude Comparator |
| Number of Bits | 8 |
| Output | Active Low |
| Output Function | A=B, A>B |
| Voltage - Supply | 4.85V ~ 5.25V |
| Current - Output High, Low | 400µA, 24mA |
| Max Propagation Delay @ V, Max CL | 30ns @ 5V, 45pF |
| Current - Quiescent (Iq) | - |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP |
| Mounting Type | Through Hole |
Submit your RFQ for SN74LS684N and get a quote within 24 hours.
