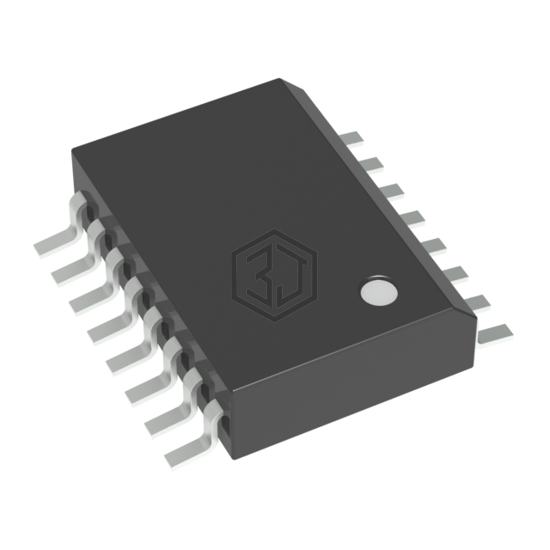

IC REG CTRLR PUSH-PULL 16SOIC
SG3525ADWR2G is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by onsemi. IC REG CTRLR PUSH-PULL 16SOIC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), voltage - supply (vcc/vdd) 8V ~ 35V, package / case 16-SOIC (0.295", 7.50mm Width).
In Stock: 1,700
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Push-Pull |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 35V |
| Frequency - Switching | 100Hz ~ 400kHz |
| Duty Cycle (Max) | 49% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Soft Start |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SG1525AL | Microchip Technology | VOLTAGE MODE PWMS, | 100% | View |
| SG1525AF-DESC | Microchip Technology | VOLTAGE MODE PWMS | 100% | View |
| SG1525AF-883B | Microchip Technology | VOLTAGE MODE PWMS | 100% | View |
| SG1525AL-883B | Microchip Technology | VOLTAGE MODE PWMS, | 100% | View |
| SG2525ADW-TR | Microchip Technology | VOLTAGE MODE PWMS, | 100% | View |
| SG1525AL-DESC | Microchip Technology | VOLTAGE MODE PWMS, | 100% | View |
Submit your RFQ for SG3525ADWR2G and get a quote within 24 hours.
