MOSFET N-CH 30V 1.6A 6SCH

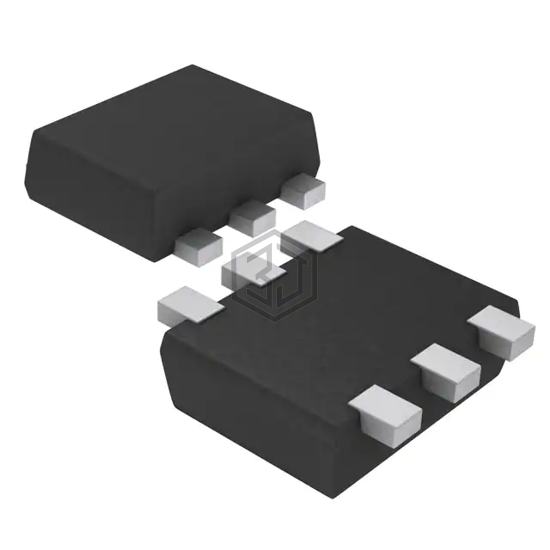

SCH2825-TL-E is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 30V 1.6A 6SCH. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 6-SMD, Flat Leads.
In Stock: 622,673
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 1.6A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 180mOhm @ 800mA, 10V |
| Vgs(th) (Max) @ Id | - |
| Gate Charge (Qg) (Max) @ Vgs | 2 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 88 pF @ 10 V |
| FET Feature | Schottky Diode (Isolated) |
| Power Dissipation (Max) | 600mW (Ta) |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-SCH |
| Package / Case | 6-SMD, Flat Leads |
Submit your RFQ for SCH2825-TL-E and get a quote within 24 hours.
