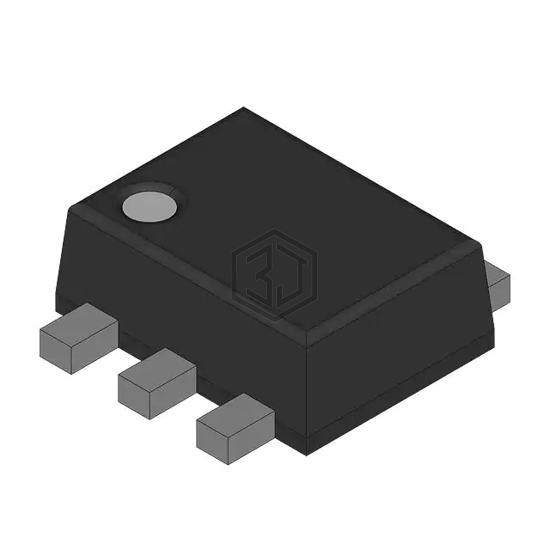

SCH1430 - POWER MOSFET, 20V, 2A,
SCH1430-TL-W is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. SCH1430 - POWER MOSFET, 20V, 2A,. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SOT-563, SOT-666.
In Stock: 25,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 125mOhm @ 1A, 4.5V |
| Vgs(th) (Max) @ Id | 1.3V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 1.8 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 128 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 800mW (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-563/SCH6 |
| Package / Case | SOT-563, SOT-666 |
Submit your RFQ for SCH1430-TL-W and get a quote within 24 hours.
