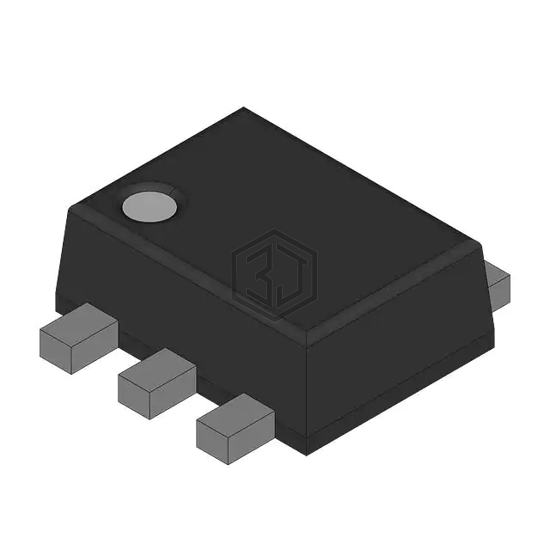

MOSFET P-CH 12V 2.4A 6SCH
SCH1301-TL-E is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 12V 2.4A 6SCH. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 6-SMD, Flat Leads.
In Stock: 115,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 12 V |
| Current - Continuous Drain (Id) @ 25°C | 2.4A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 120mOhm @ 1.3A, 4.5V |
| Vgs(th) (Max) @ Id | - |
| Gate Charge (Qg) (Max) @ Vgs | 6.5 nC @ 4.5 V |
| Vgs (Max) | - |
| Input Capacitance (Ciss) (Max) @ Vds | 450 pF @ 6 V |
| FET Feature | - |
| Power Dissipation (Max) | 800mW (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-SCH |
| Package / Case | 6-SMD, Flat Leads |
Submit your RFQ for SCH1301-TL-E and get a quote within 24 hours.
