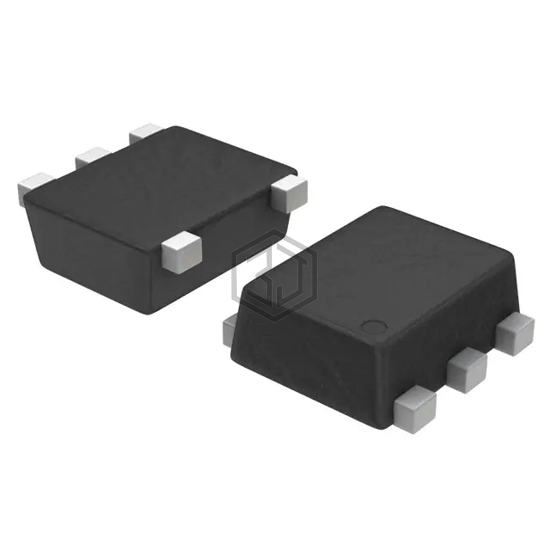

SBS822-TL-W
DIODE ARRAY SCHOTTKY 20V 5MCPH
SBS822-TL-W is a Diodes - Rectifiers - Arrays manufactured by onsemi. DIODE ARRAY SCHOTTKY 20V 5MCPH. Key specifications: mounting type Surface Mount, package / case 6-SMD (5 Leads), Flat Lead.
In Stock: 61
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Diode Configuration | 2 Independent |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Current - Average Rectified (Io) (per Diode) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 460 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 10 ns |
| Current - Reverse Leakage @ Vr | 110 µA @ 10 V |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD (5 Leads), Flat Lead |
| Supplier Device Package | 5-MCPH |
Frequently Asked Questions
SBS822-TL-W is a Diodes - Rectifiers - Arrays manufactured by onsemi. DIODE ARRAY SCHOTTKY 20V 5MCPH
The mounting type of SBS822-TL-W is Surface Mount.
The package type of SBS822-TL-W is 6-SMD (5 Leads), Flat Lead.
Yes, SBS822-TL-W is listed as Obsolete. Consider requesting a quote for alternative parts.
