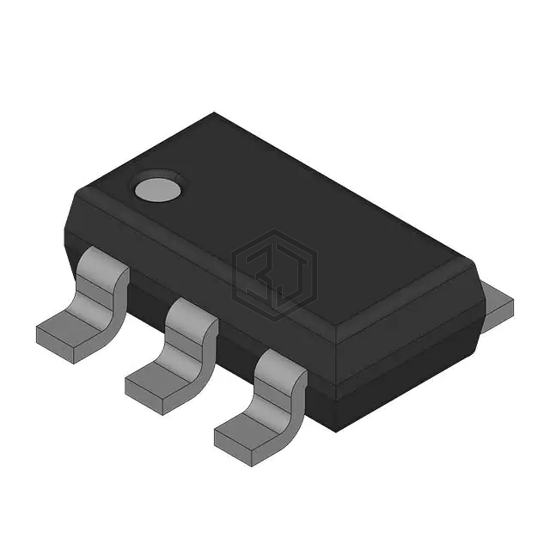

SBS804-TL-E
RECTIFIER 15V, 1A
SBS804-TL-E is a Diodes - Rectifiers - Arrays manufactured by onsemi. RECTIFIER 15V, 1A. Key specifications: mounting type Surface Mount, package / case SOT-23-5 Thin, TSOT-23-5.
In Stock: 7,300
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Diode Configuration | 2 Independent |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 15 V |
| Current - Average Rectified (Io) (per Diode) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 400 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 15 ns |
| Current - Reverse Leakage @ Vr | 500 µA @ 6 V |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | 5-CPH |
Frequently Asked Questions
SBS804-TL-E is a Diodes - Rectifiers - Arrays manufactured by onsemi. RECTIFIER 15V, 1A
The mounting type of SBS804-TL-E is Surface Mount.
The package type of SBS804-TL-E is SOT-23-5 Thin, TSOT-23-5.
Yes, SBS804-TL-E is listed as Obsolete. Consider requesting a quote for alternative parts.
