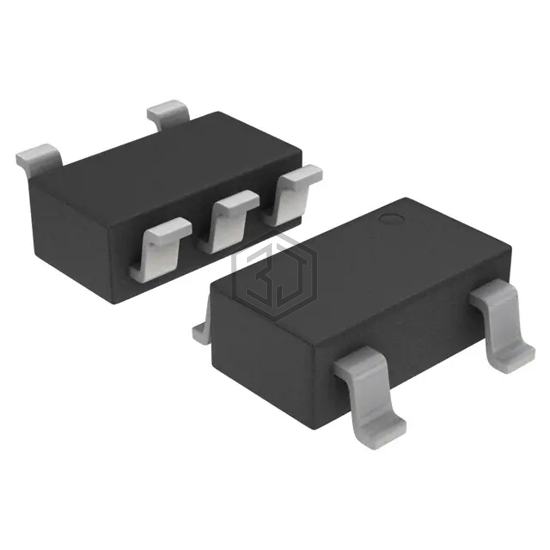

SBE805-S-TL-E
DIODE ARRAY SCHOTTKY 30V 5CPH
SBE805-S-TL-E is a Diodes - Rectifiers - Arrays manufactured by onsemi. DIODE ARRAY SCHOTTKY 30V 5CPH. Key specifications: mounting type Surface Mount, package / case SC-74A, SOT-753.
In Stock: 945,000
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Diode Configuration | 2 Independent |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) (per Diode) | 500mA |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 500 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 10 ns |
| Current - Reverse Leakage @ Vr | 30 µA @ 15 V |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | 5-CPH |
Frequently Asked Questions
SBE805-S-TL-E is a Diodes - Rectifiers - Arrays manufactured by onsemi. DIODE ARRAY SCHOTTKY 30V 5CPH
The mounting type of SBE805-S-TL-E is Surface Mount.
The package type of SBE805-S-TL-E is SC-74A, SOT-753.
Yes, SBE805-S-TL-E is listed as Obsolete. Consider requesting a quote for alternative parts.
