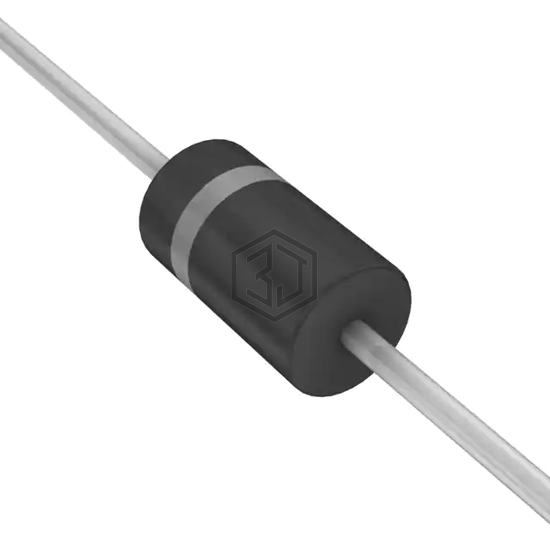

SB520
DIODE SCHOTTKY 20V 5A DO201AD
SB520 is a Diodes - Rectifiers - Single manufactured by onsemi. DIODE SCHOTTKY 20V 5A DO201AD. Key specifications: mounting type Through Hole, package / case DO-201AD, Axial.
In Stock: 2,331
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Current - Average Rectified (Io) | 5A |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 500 µA @ 20 V |
| Capacitance @ Vr, F | 500pF @ 4V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | DO-201AD, Axial |
| Supplier Device Package | DO-201AD |
| Operating Temperature - Junction | -55°C ~ 150°C |
Frequently Asked Questions
SB520 is a Diodes - Rectifiers - Single manufactured by onsemi. DIODE SCHOTTKY 20V 5A DO201AD
The mounting type of SB520 is Through Hole.
The package type of SB520 is DO-201AD, Axial.
Yes, SB520 is listed as Obsolete. Consider requesting a quote for alternative parts.
