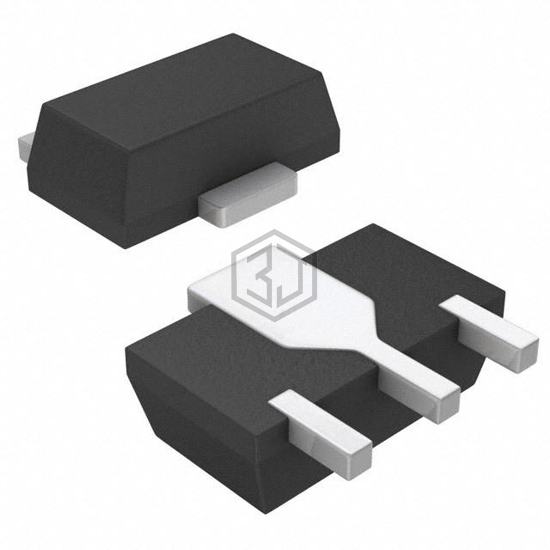

SB07-03P-TD-E
DIODE SCHOTTKY 30V 700MA PCP
SB07-03P-TD-E is a Diodes - Rectifiers - Single manufactured by onsemi. DIODE SCHOTTKY 30V 700MA PCP. Key specifications: mounting type Surface Mount, package / case TO-243AA.
In Stock: 42,998
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 700mA |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 700 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 10 ns |
| Current - Reverse Leakage @ Vr | 80 µA @ 15 V |
| Capacitance @ Vr, F | 26pF @ 10V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-243AA |
| Supplier Device Package | PCP |
| Operating Temperature - Junction | -55°C ~ 125°C |
Frequently Asked Questions
SB07-03P-TD-E is a Diodes - Rectifiers - Single manufactured by onsemi. DIODE SCHOTTKY 30V 700MA PCP
The mounting type of SB07-03P-TD-E is Surface Mount.
The package type of SB07-03P-TD-E is TO-243AA.
Yes, SB07-03P-TD-E is listed as Obsolete. Consider requesting a quote for alternative parts.
