SB05-03Q-TL-E

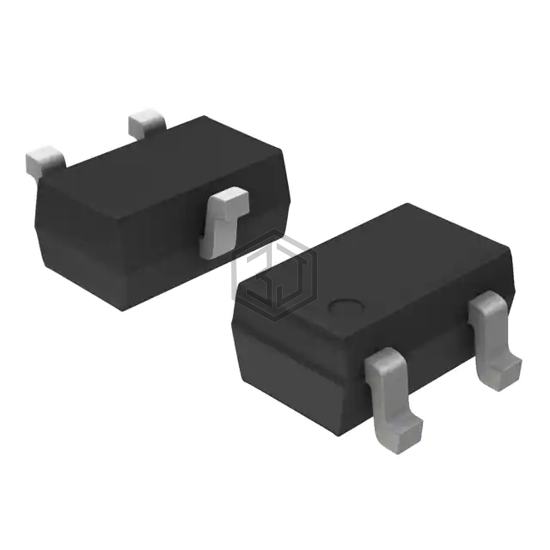

DIODE SCHOTTKY 30V 500MA 3MCP
SB05-03Q-TL-E is a Diodes - Rectifiers - Single manufactured by onsemi. DIODE SCHOTTKY 30V 500MA 3MCP. Key specifications: mounting type Surface Mount, package / case SC-70, SOT-323.
In Stock: 89,202
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 500mA |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 500 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 10 ns |
| Current - Reverse Leakage @ Vr | 30 µA @ 15 V |
| Capacitance @ Vr, F | 16pF @ 10V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | 3-MCP |
| Operating Temperature - Junction | -55°C ~ 125°C |
Frequently Asked Questions
SB05-03Q-TL-E is a Diodes - Rectifiers - Single manufactured by onsemi. DIODE SCHOTTKY 30V 500MA 3MCP
The mounting type of SB05-03Q-TL-E is Surface Mount.
The package type of SB05-03Q-TL-E is SC-70, SOT-323.
