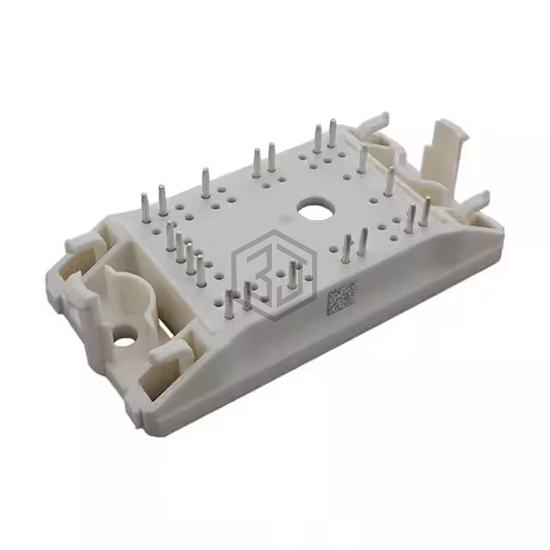

PIM GENERATION3 Q0PACK 1200V, 80
NXH80T120L3Q0S3G is a Transistors - IGBTs - Modules manufactured by onsemi. PIM GENERATION3 Q0PACK 1200V, 80. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case Module, current - collector (ic) (max) 75 A.
In Stock: 24
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Configuration | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 75 A |
| Power - Max | 188 W |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 80A |
| Current - Collector Cutoff (Max) | 300 µA |
| Input Capacitance (Cies) @ Vce | 18.15 nF @ 20 V |
| Input | Standard |
| NTC Thermistor | Yes |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | 20-PIM/Q0PACK (55x32.5) |
Submit your RFQ for NXH80T120L3Q0S3G and get a quote within 24 hours.
