MASS MARKET 250KW 1500V Q2 PACK

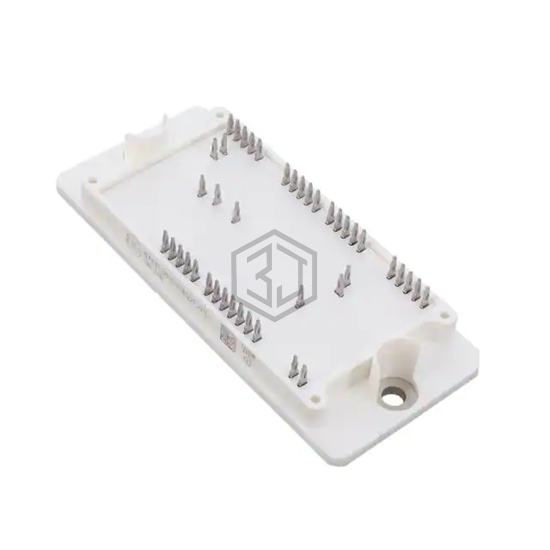

NXH400N100H4Q2F2PG is a Transistors - IGBTs - Modules manufactured by onsemi. MASS MARKET 250KW 1500V Q2 PACK. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case Module, current - collector (ic) (max) 409 A.
In Stock: 36
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Configuration | Three Level Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1000 V |
| Current - Collector (Ic) (Max) | 409 A |
| Power - Max | 959 W |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 400A |
| Current - Collector Cutoff (Max) | 500 µA |
| Input Capacitance (Cies) @ Vce | 26.093 nF @ 20 V |
| Input | Standard |
| NTC Thermistor | Yes |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | 42-PIM/Q2PACK (93x47) |
Submit your RFQ for NXH400N100H4Q2F2PG and get a quote within 24 hours.
