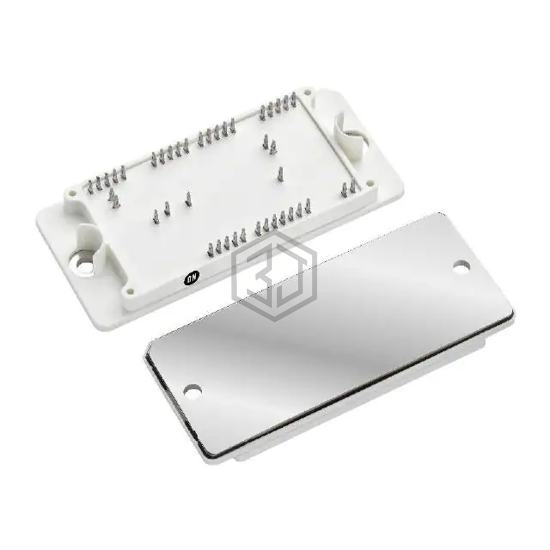

IC PWR MODULE 1000V 350A PIM42
NXH350N100H4Q2F2P1G is a Transistors - IGBTs - Modules manufactured by onsemi. IC PWR MODULE 1000V 350A PIM42. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module, current - collector (ic) (max) 303 A.
In Stock: 7,225
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Configuration | Three Level Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1000 V |
| Current - Collector (Ic) (Max) | 303 A |
| Power - Max | 276 W |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 375A |
| Current - Collector Cutoff (Max) | 1 mA |
| Input Capacitance (Cies) @ Vce | 24.146 nF @ 20 V |
| Input | Standard |
| NTC Thermistor | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | 42-PIM/Q2PACK (93x47) |
Submit your RFQ for NXH350N100H4Q2F2P1G and get a quote within 24 hours.
