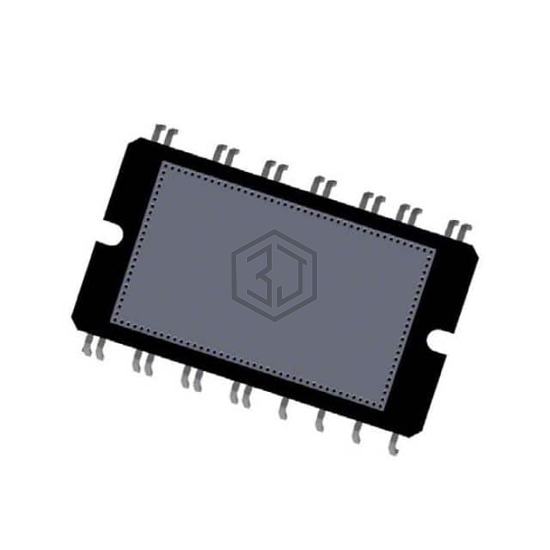

IGBT MODULE, CIB 1200 V, 25 A IG
NXH25C120L2C2SG is a Transistors - IGBTs - Modules manufactured by onsemi. IGBT MODULE, CIB 1200 V, 25 A IG. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case 26-PowerDIP Module (1.199", 47.20mm), current - collector (ic) (max) 25 A.
In Stock: 5,040
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Configuration | Three Phase Inverter with Brake |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 25 A |
| Power - Max | 20 mW |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 25A |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 6.2 nF @ 20 V |
| Input | Three Phase Bridge Rectifier |
| NTC Thermistor | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 26-PowerDIP Module (1.199", 47.20mm) |
| Supplier Device Package | 26-DIP |
Submit your RFQ for NXH25C120L2C2SG and get a quote within 24 hours.
