T6 40V N-CH LL IN LFPAK33

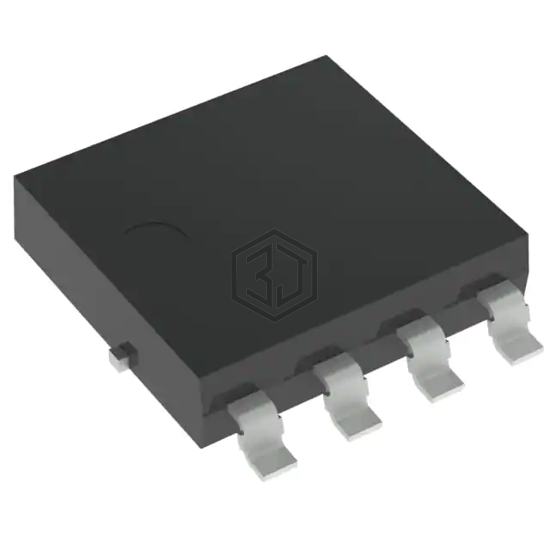

NVTYS007N04CLTWG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. T6 40V N-CH LL IN LFPAK33. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-1205, 8-LFPAK56.
In Stock: 5,973
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 16A (Ta), 54A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 7.3mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 30µA |
| Gate Charge (Qg) (Max) @ Vgs | 16 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 900 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.1W (Ta), 38W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-LFPAK |
| Package / Case | SOT-1205, 8-LFPAK56 |
Submit your RFQ for NVTYS007N04CLTWG and get a quote within 24 hours.
