MOSFET N-CH 40V 29A/132A LFPAK4

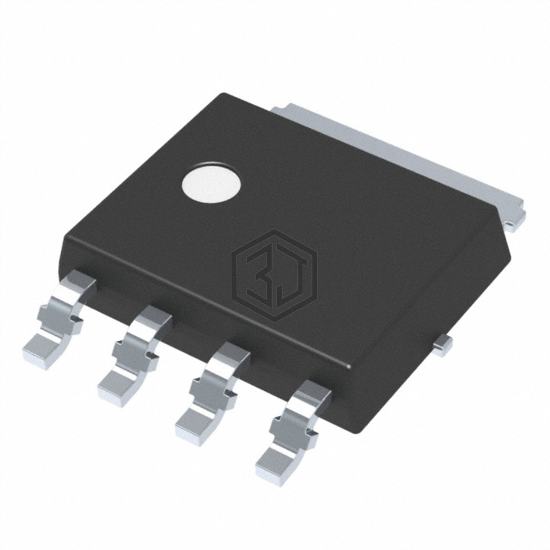

NVMYS2D1N04CLTWG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 40V 29A/132A LFPAK4. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-1023, 4-LFPAK.
In Stock: 5,880
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 29A (Ta), 132A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2.5mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 90µA |
| Gate Charge (Qg) (Max) @ Vgs | 50 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3100 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.9W (Ta), 83W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | LFPAK4 (5x6) |
| Package / Case | SOT-1023, 4-LFPAK |
Submit your RFQ for NVMYS2D1N04CLTWG and get a quote within 24 hours.
