MOSFET N-CH 40V 14A/38A 4LFPAK

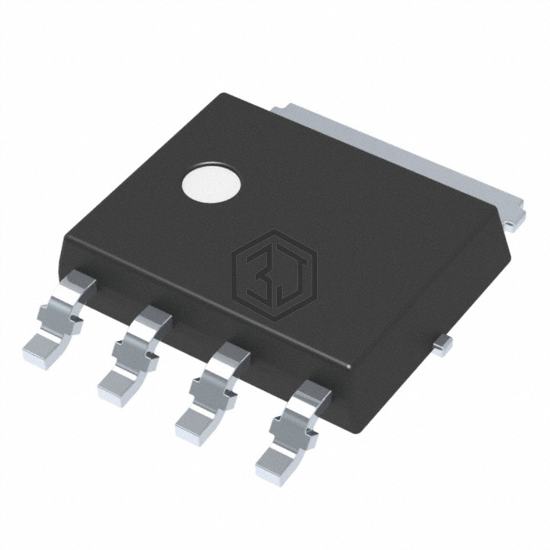

NVMYS010N04CLTWG is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 40V 14A/38A 4LFPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case SOT-1023, 4-LFPAK.
In Stock: 1,274
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 14A (Ta), 38A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 10.3mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 20µA |
| Gate Charge (Qg) (Max) @ Vgs | 7.3 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 570 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.8W (Ta), 28W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | LFPAK4 (5x6) |
| Package / Case | SOT-1023, 4-LFPAK |
Submit your RFQ for NVMYS010N04CLTWG and get a quote within 24 hours.
