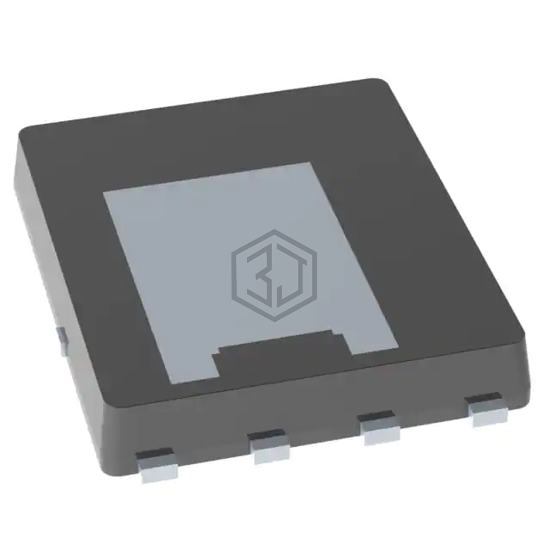

MOSFET N-CH 40V 48.9A/313A 8DFN
NVMFSC0D9N04C is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 40V 48.9A/313A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerVDFN.
In Stock: 1,320
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 48.9A (Ta), 313A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 0.87mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 86 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6100 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 4.1W (Ta), 166W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DFN (5x6.15) |
| Package / Case | 8-PowerVDFN |
Submit your RFQ for NVMFSC0D9N04C and get a quote within 24 hours.
