POWER MOSFET, SINGLE, N-CHANNEL,

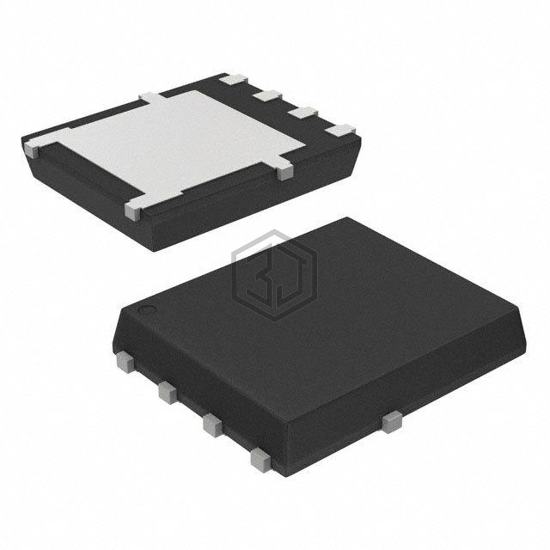

NVMFS5C420NLT1G is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. POWER MOSFET, SINGLE, N-CHANNEL,. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN, 5 Leads.
In Stock: 9,726
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 45A (Ta), 277A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 200µA |
| Gate Charge (Qg) (Max) @ Vgs | 100 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 7020 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.8W (Ta), 146W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 5-DFN (5x6) (8-SOFL) |
| Package / Case | 8-PowerTDFN, 5 Leads |
Submit your RFQ for NVMFS5C420NLT1G and get a quote within 24 hours.
