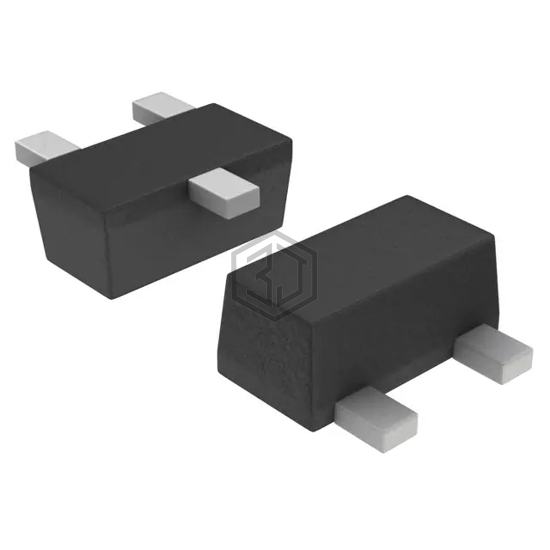

MOSFET N-CH 20V 915MA SC89
NVE4153NT1G is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 20V 915MA SC89. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-89, SOT-490.
In Stock: 4,415
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 915mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 230mOhm @ 600mA, 4.5V |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 1.82 nC @ 4.5 V |
| Vgs (Max) | ±6V |
| Input Capacitance (Ciss) (Max) @ Vds | 110 pF @ 16 V |
| FET Feature | - |
| Power Dissipation (Max) | 300mW (Tj) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-89-3 |
| Package / Case | SC-89, SOT-490 |
Submit your RFQ for NVE4153NT1G and get a quote within 24 hours.
